| Model | SR 75 1500 | SR 90 2000 | SR 90 2200 | SR 100 2650 | SR 100 2200 | SR 120 2650 |
|---|---|---|---|---|---|---|
| Screw Dia (MM) | 75 | 90 | 90 | 100 | 100 | 120 |
| L/D Ratio | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Die Width (MM) | 1550 | 2000 | 2200 | 2650 | 3200 | 3850 |
| Maximum Coating Width (MM) | 1350 | 1850 | 2050 | 2500 | 3050 | 3650 |
| Minimum Coating Width (MM) | 1400 | 1200 | 1200 | 1600 | 2000 | 2600 |
| Coating Thickness (Micron) | 20 - 80 | 20 - 80 | 20 - 80 | 20 - 80 | 20 - 80 | 20 - 80 |
| Max. Output (Kg./Hr.) PP | 90 - 110 | 140 - 160 | 140 - 160 | 140 - 160 | 220 - 240 | 220 - 240 |
| Max. Output (Kg./Hr.) LDPE | 90 - 110 | 160 - 180 | 160 - 180 | 160 - 180 | 250 - 270 | 250 - 270 |
| Max. Line Speed (M.P.M) | 100 | 100 | 100 | 90 | 100 | 90 |

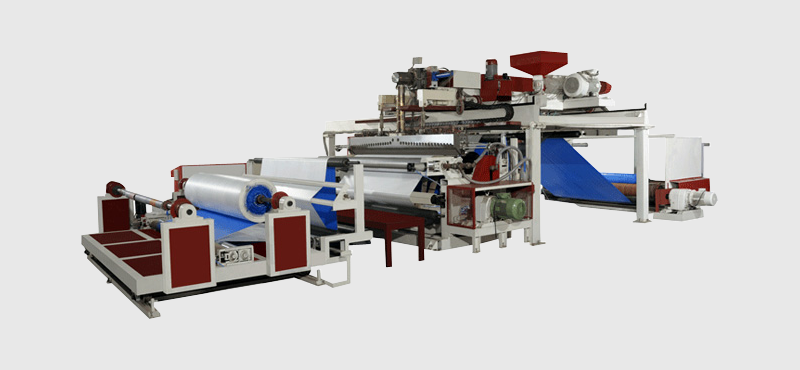

Extrusion Coating Lines (Lamination Plant) : For coating thin layer of polyolefin's (Mainly LDPE / PP) on substrates like Paper, Cotton Cloth, Woven fabrics, jute fabric, Aluminum foil, BOPP film, Polyester film, etc. Tandem Lamination Plant For coating Circular Woven fabric, for producing multi layer laminates up to 2 layers along with the various substrates like Paper, Aluminum foil, Polyester film etc.
